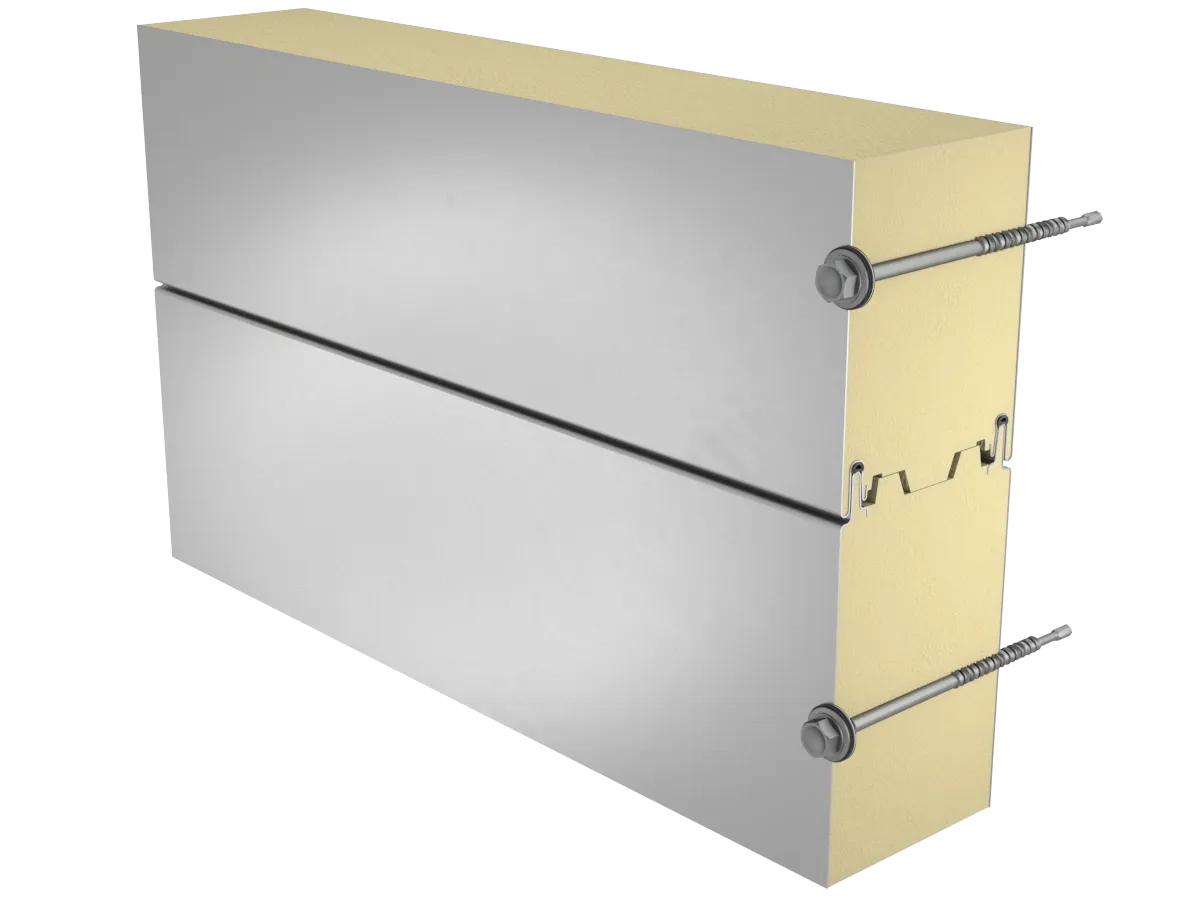

Product Description

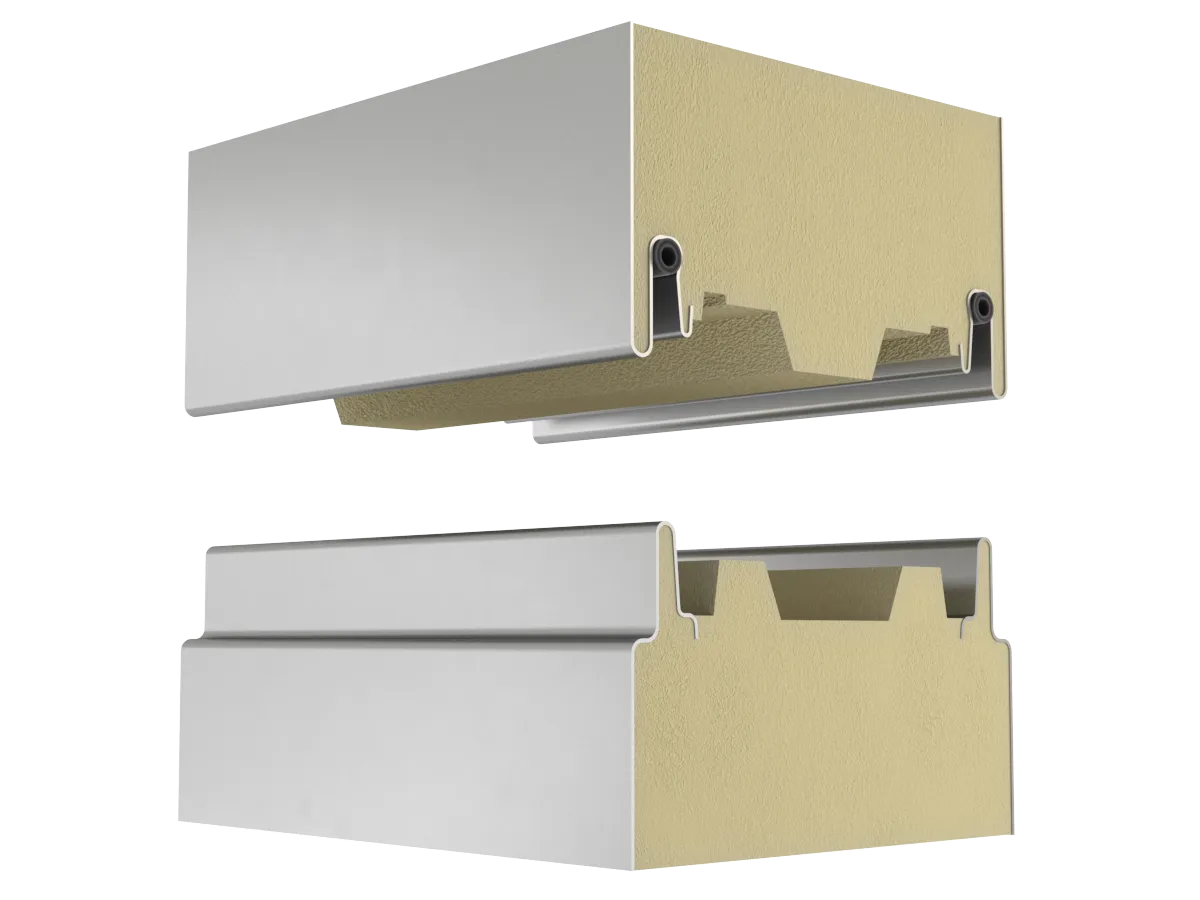

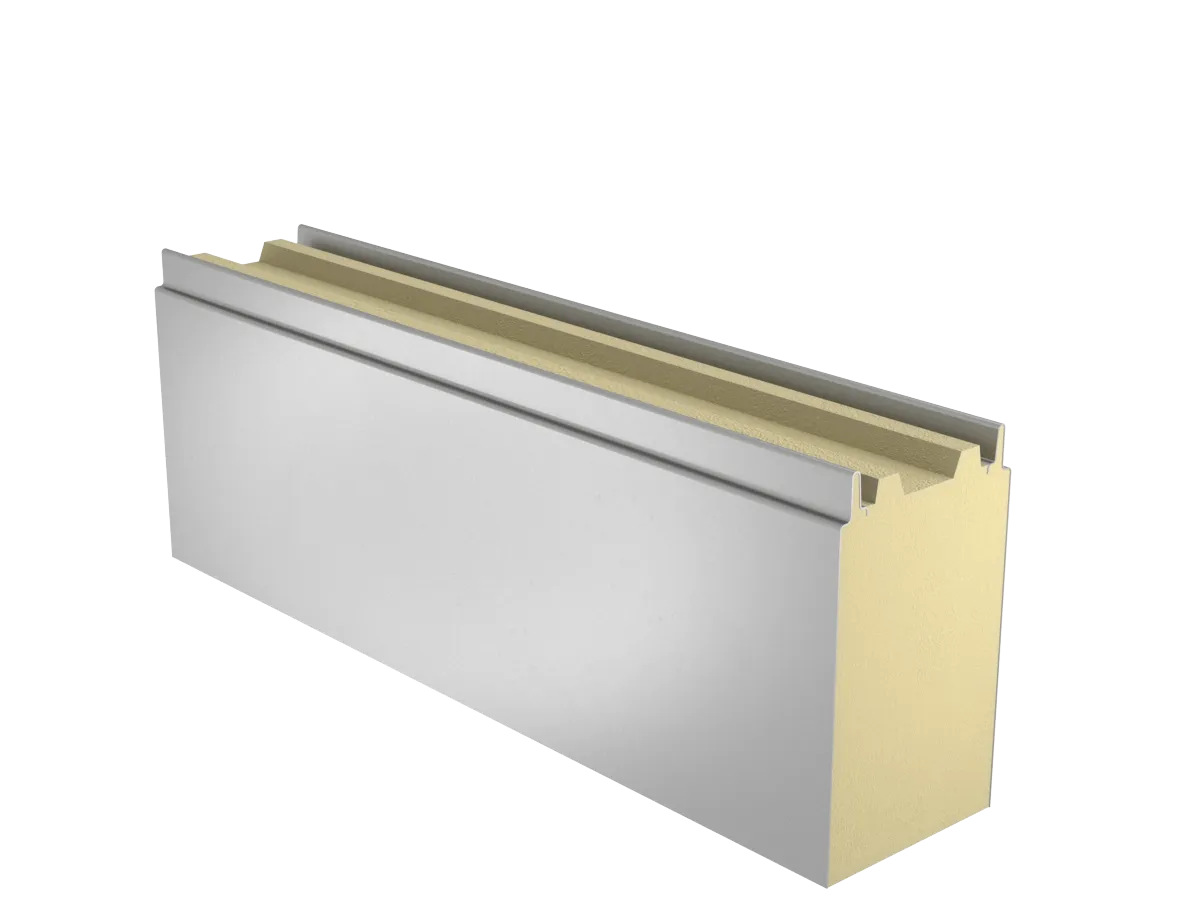

Cladme™ Cold storage panels are designed for temperature-controlled and hygienically safe environments, including food processing facilities, cold storage, fresh logistics, clean rooms, biotechnology, and the pharmaceutical industry . With exceptional thermal performance and an innovative joint system, our Cold storage panels maintain temperatures as low as -40°C, effectively preventing warm air infiltration while ensuring airtight conditions to protect products from contamination and water vapor. Our Cold storage panels with PIR core offer superior insulation, moisture resistance, and food-safe properties, making them the ideal choice for energy-efficient and durable cold storage applications. For a clean, modern aesthetic, we also offer hidden...
Technical Specification
Cladme™ Cold storage panels are engineered for maximum thermal performance in cold storage applications.
Key features include:
- PIR core:
- Thicknesses: 40 mm to 220 mm
- Superior insulation properties
- U-values as low as 0.09 W/m²K
- Panel dimensions:
- Standard widths: 1000 mm, 1110 mm, and 1150 mm
- Lengths: 3.0 m to 13.5 m
- Fire safety:
- Fire reaction class: B-s1,d0 or B-s2,d0 (thickness-dependent)
- FM 4880, FM 4881 and FM 4882
- Fire resistance up to EI 60 in acc. to EN 13501-2:2016
Optional features:
- Hidden fixing
- Hollow chamber profile (HKP) for hygienic and neat joint closure
- Factory-fitted, condensation-repellent sealing tape in longitudinal joints
These panels offer exceptional energy efficiency and flexibility for various cold storage project requirements, with added safety and performance enhancements for cold, damp environments.
| Module width [mm] | 1000 – 1150 | |||||||||
| Core Thickness [mm] | 40 | 60 | 80 | 100 | 120 | 140 | 150 | 170 | 200 | 220 |
|---|---|---|---|---|---|---|---|---|---|---|
| Fire resistance class acc. to EN 13501-2 | EI15 – EI60 | |||||||||
| U [W/m2K] acc. to EN 14509 (2013-12) incl. joint influence | 0.51 | 0.33 | 0.24 | 0.19 | 0.16 | 0.14 | 0.13 | 0.11 | 0.10 | 0.09 |
| Weight [kg/m2] | 10.9 | 11.7 | 12.4 | 13.2 | 14.0 | 14.7 | 15.1 | 15.9 | 17.0 | 17.80 |
| Classification reaction to fire acc. EN 13501-1 | B-s1,d0 | |||||||||
| Rw [dB] | 25 | |||||||||
| Max. Available Length [m] | 20 | |||||||||
Available in other thicknesses.
Steel sheet thickness
- Internal 0.4/0.5/0.6
- External 0.5/0.6/0.75
Profile types
| Profile name | Profiling | External sheet | Internal sheet |
|---|---|---|---|

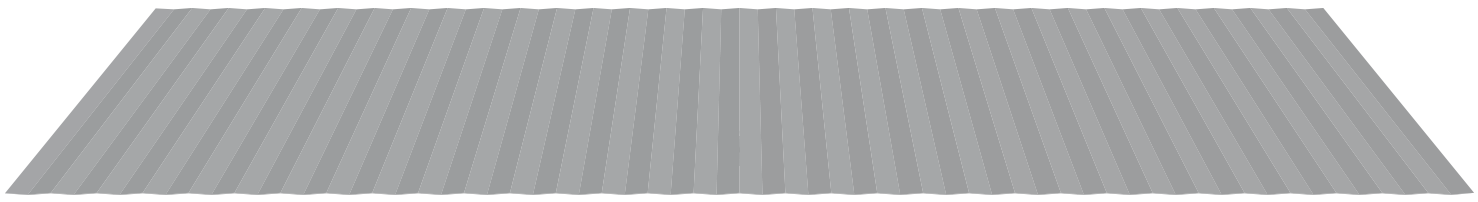

| M (micro) |  |
 |
|

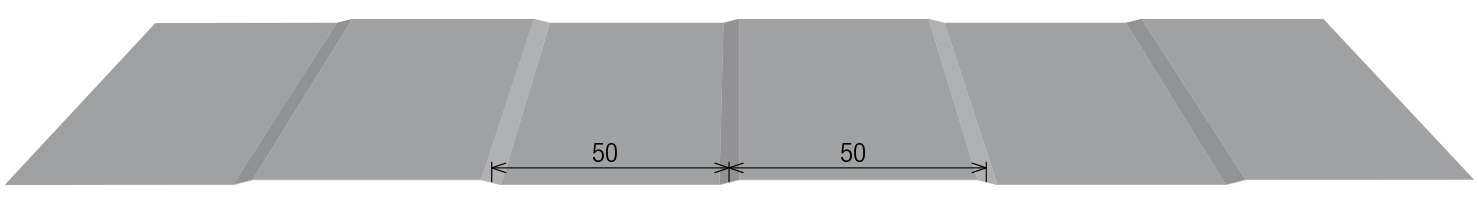

| E (eurobox) |  |
|
|

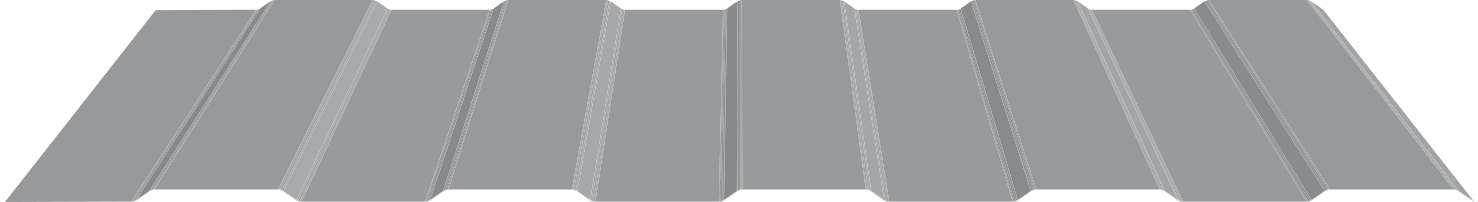

| D (deep) |  |
|
|

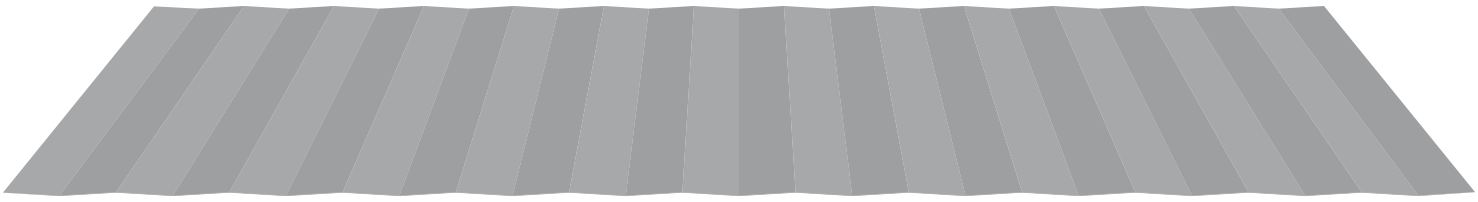

| V (v-profile) |  |
|
|

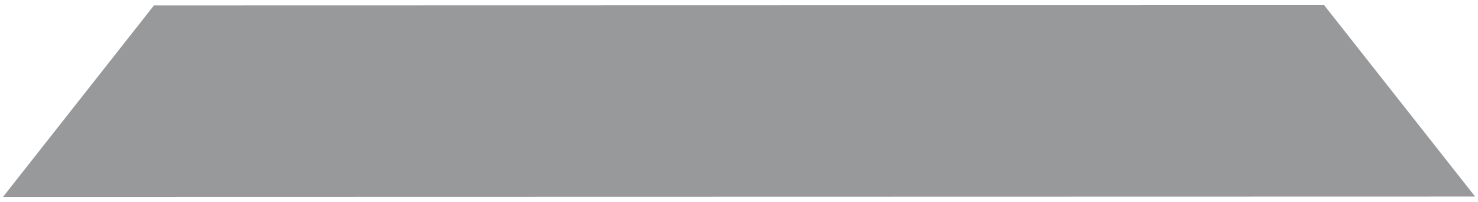

| S (smooth) |  |
|
|
Colours
RAL5010
RAL6011
RAL7016
RAL9001
RAL9002 Grey White
Available for Hidden Fixing
RAL9006
RAL9007
RAL9010
Coatings
- Polyester
- Stainless
- Food Safe
Used in
- Pharmaceutical facilities
- Food Processing facilities
- Cold storages
- Warehouses
- Distribution centers
- Logistic centers
- Industrial buildings
- Supermarkets / Hypermarkets
Benefits
Cladme™ cold storage system offer exceptional advantages for modern cold storage construction.
Unmatched thermal insulation performance contributes to superior energy efficiency, with insulation twice as effective as mineral wool, allowing for thinner sandwich panels (IMP) in certain applications.
Versatile design allows for various installation methods, with options for Food Safe film coating (LMF), FS 3000, FS 4000, or stainless steel finishes to meet specific hygiene requirements.
Certified for safety and reliability, our cold storage panels meet FM standards (FM 4880, FM 4881, FM 4882), ensuring excellent performance and making them an ideal choice for demanding applications.
