Product Description

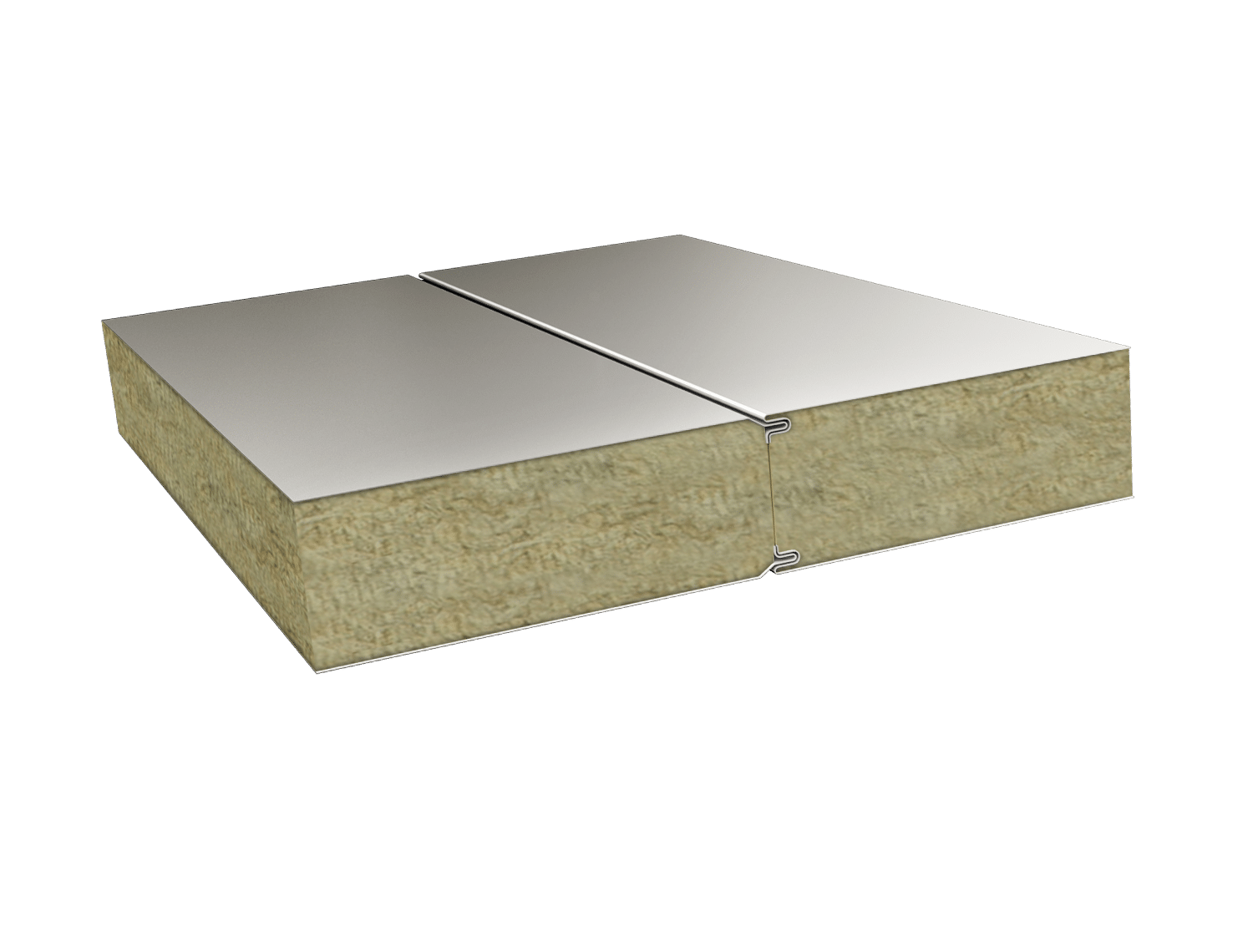

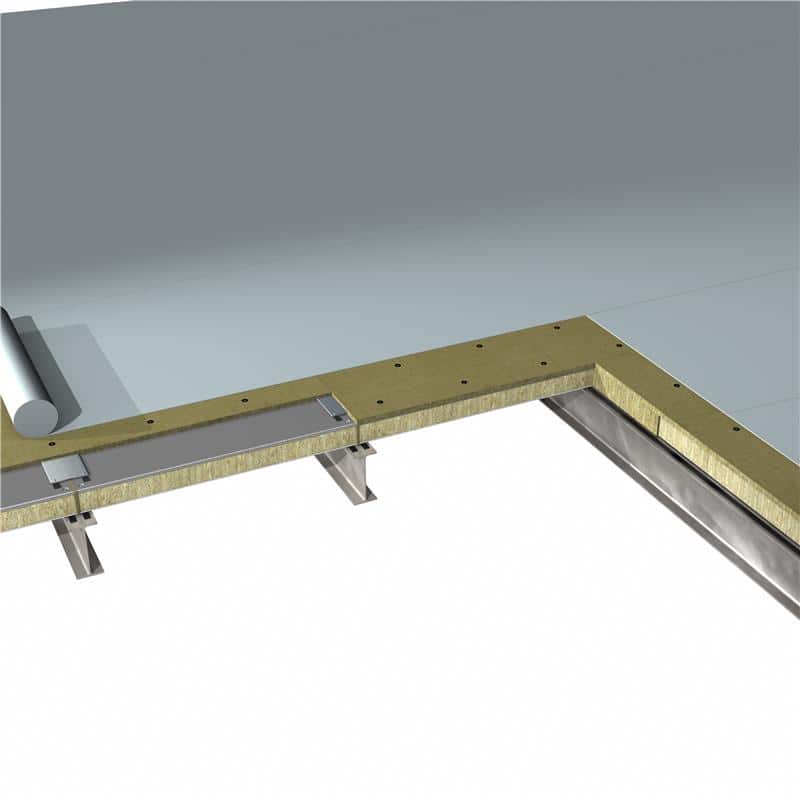

Cladme™ introduces a revolutionary flat roofing system that redefines efficiency and performance for low-slope and flat roof applications. This innovative sandwich panel solution replaces traditional deck profiles, vapor barriers, and multilayer insulation with an integrated product that simplifies construction, improves installation speed, and enhances aesthetics compared to conventional methods. Designed for versatility, these panels offer exceptional structural integrity, air-tightness, and durability, making them ideal for demanding industrial and commercial projects. The mineral wool insulation core ensures high fire safety, non-combustibility, and superior thermal and acoustic insulation, meeting strict regulatory standards. For applications where temperature control is a higher priority than...
Technical Specification
Cladme™ flat roofing system is engineered to redefine modern roofing by combining high structural integrity, energy efficiency, and fast installation.
Key features include:
- Single-ply membrane compatibility:
- Supports TPO, PVC, bituminous, and EPDM membranes (installed separately by the contractor)
- Optional PIR core:
- Delivers superior thermal performance for energy-efficient and temperature-controlled facilities
- Exceptional weather resistance:
- Prevents heat loss and moisture infiltration, ensuring long-lasting durability
- High load-bearing capacity:
- Reduces the need for additional structural support
- Fast and cost-efficient installation:
- Minimizes labor time and overall project costs
- One simple-component system
Panel specifications include:
- U-values as low as 0.12 W/m²K
- Core thicknesses up to 300 mm
- Fire resistance up to 4 hours, A2 – s1,d0
- Ideal for low-slope and flat roofs
| Module width [mm] | 1000 – 1200 | |||||||||
| Core Thickness [mm] | 50 | 80 | 100 | 120 | 150 | 175 | 200 | 240 | 300 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Fire resistance class acc. to EN 13501-2 | EI45 – EI240 | |||||||||
| U [W/m2 K] acc. to EN 14509 (2013-12) incl. joint influence | 0.77 | 0.53 | 0.43 | 0.36 | 0.29 | 0.25 | 0.22 | 0.18 | 0.14 | |
| Weight [kg/m2] | 10.9 | 12.4 | 13.2 | 14.0 | 14.7 | 15.1 | 15.9 | 17.0 | 17.68 | |
| Classification reaction to fire acc. EN 13501-1 | A2 – s1,d0 | |||||||||
| Rw [dB] | 32 | |||||||||
| Max. Available Length [m] | 12 | |||||||||
Thermal insulation
U-values for CladmeTM Roof panels together with ROB80 wool boards (ROS80 wool slabs), calculated in accordance with EN ISO 6946
| λD | U-value [W/m2K] (A surface resistance Rsi + Rse = 0.13 m2K/W is included) | |||||||||
| [W/mK] | 50 | 80 | 100 | 120 | 150 | 175 | 200 | 240 | 300 | |
| Panel | 0.045 | 0.77 | 0.53 | 0.43 | 0.36 | 0.29 | 0.25 | 0.22 | 0.18 | 0.14 |
|---|---|---|---|---|---|---|---|---|---|---|
| Panel + 20 mm ROB80 |
0.045 0.039 |
0.55 | 0.42 | 0.35 | 0.30 | 0.25 | 0.22 | 0.20 | 0.17 | 0.13 |
| Panel + 30 mm ROB80 |
0.045 0.039 |
0.48 | 0.38 | 0.32 | 0.28 | 0.24 | 0.21 | 0.19 | 0.16 | 0.13 |
| Panel + 40 mm ROS80 |
0.045 0.039 |
0.43 | 0.35 | 0.30 | 0.26 | 0.22 | 0.20 | 0.18 | 0.15 | 0.13 |
| Panel + 50 mm ROS80 |
0.045 0.039 |
0.39 | 0.32 | 0.28 | 0.25 | 0.21 | 0.19 | 0.17 | 0.15 | 0.12 |
Cladme™ stone wool board ROB80 standard thicknesses is 20mm and 30mm. Thicknesses 40 and 50 mm are also available, but then the product name changes to ROS80.
Steel sheet thickness
- Internal 0.5/0.6/0.7
- External 0.6/0.7
Profile types
| Profile name | Profiling | External sheet | Internal sheet |
|---|---|---|---|
| L (line 150) |  |
 |
|
| L (line 200) |  |
|
|
| L (line 600) |  |
|
|
| E (eurobox) |  |
|
|
| V (v-profile) |  |
|
|
| M (micro) |  |
|
|
| S (smooth) |  |
|
|
*All profiles, except M (micro), are also available as acoustic panels.
Colours
RAL0020 Howlite White
RAL0021 Agate Grey
RAL0029 Goldstone Red
RAL0035 Agate Blue
RAL7016 Anthracite Grey
Available for Hidden Fixing
RAL7024 Graphite Grey
RAL7035 Light Grey
Available for Hidden Fixing
RAL9002 Grey White
Available for Hidden Fixing
RAL9005 Jet Matt
RAL9006 Silver
Available for Hidden Fixing
RAL9007 Dark Silver
Available for Hidden Fixing
RAL9010 Bright white
Zinc
Coatings
- Polyester
Used in
- Data centers
- Battery plants
- Automotive manufacturing facilities
- Pharmaceutical facilities
- Food Processing facilities
- Agriculture facilities
- Cold storages
- Warehouses
- Distribution centers
- Logistic centers
- Industrial buildings
- Airport terminals
- Aircraft hangars
- Arenas
- Shopping malls
- Supermarkets / Hypermarkets
- Training facilities
- Schools
Benefits
Cladme™ flat roofing system offers unparalleled advantages for modern construction projects, combining innovation with practicality.
Simple-component system replaces multiple traditional deck profiles, vapor barriers, and multilayer insulation, significantly reducing installation time and labor costs while ensuring consistent quality.
Suitable for external flat roofs and internal ceilings, particularly in food manufacturing facilities, providing smooth, easy-to-clean surfaces that meet stringent hygiene requirements.
Excellent thermal insulation, air tightness, and load-bearing capacity in a slim profile, enhancing energy efficiency and structural integrity while maximizing usable space.
