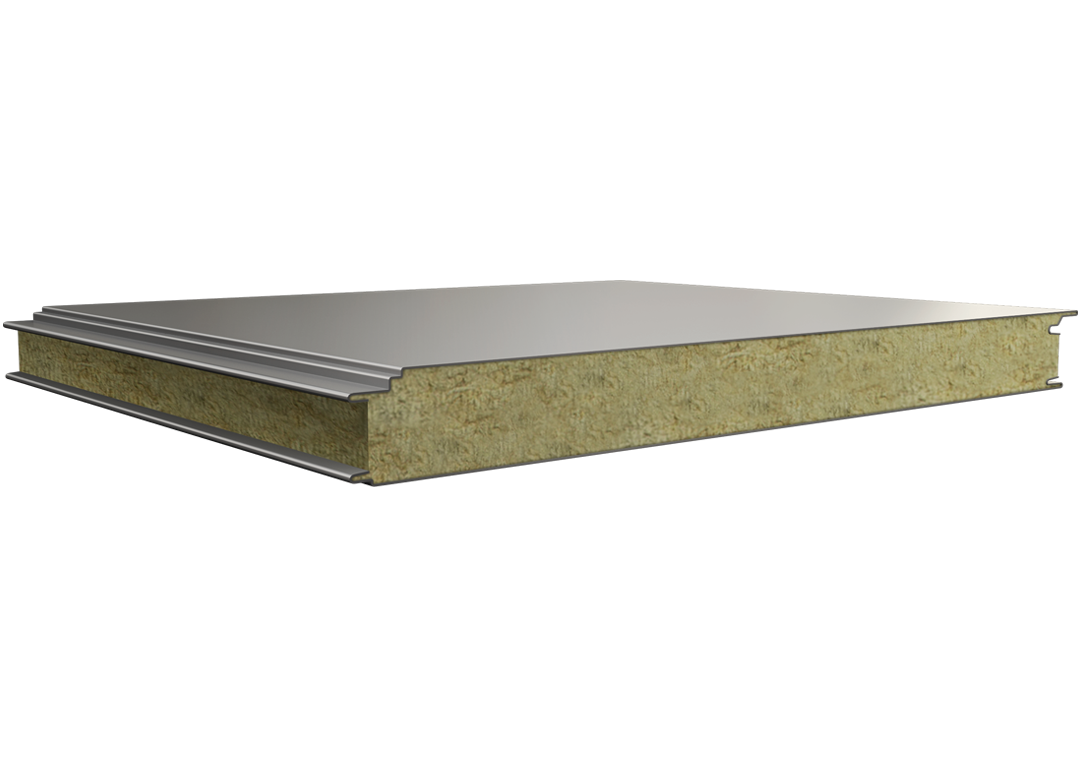

Product Description

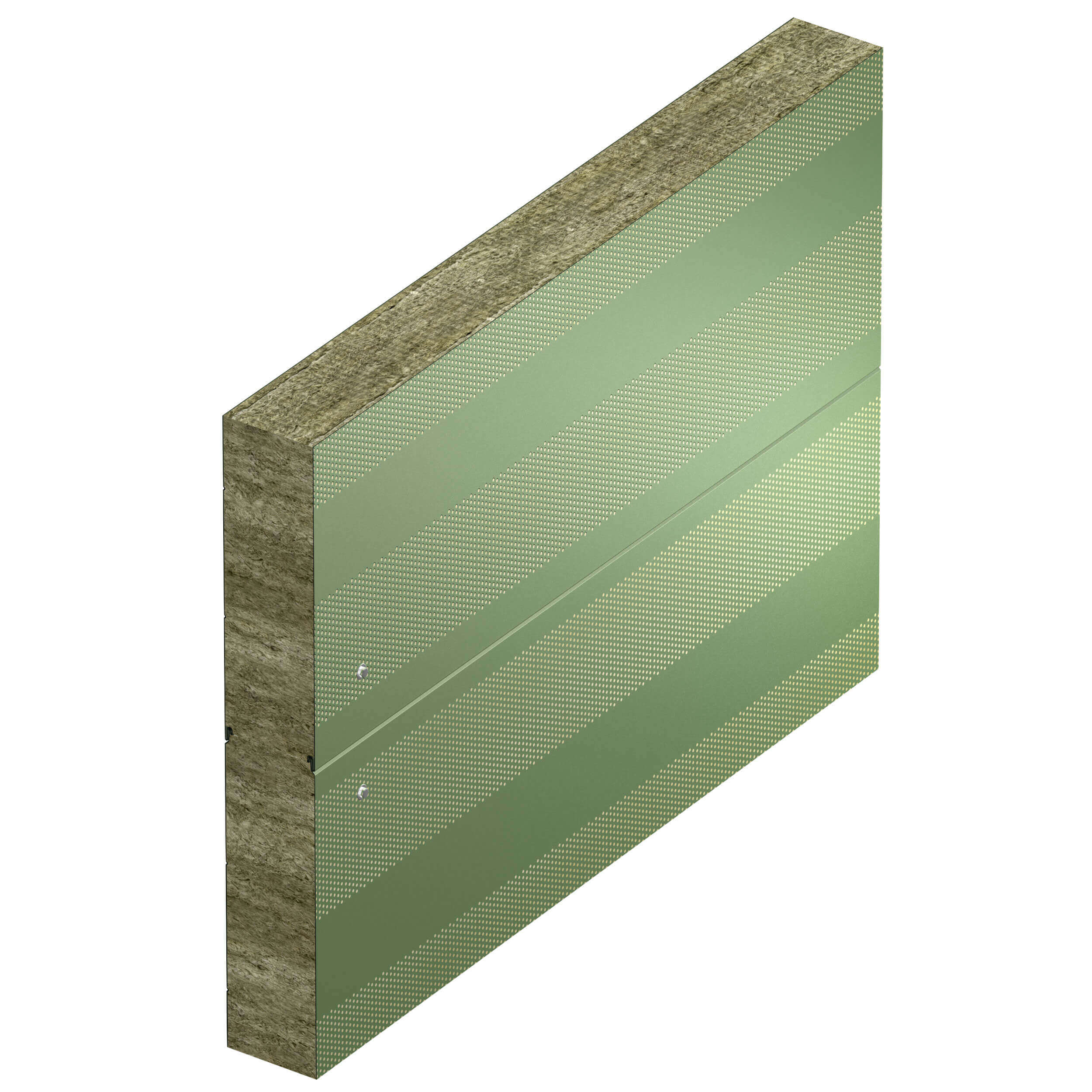

Cladme™ mineral wool panels offer superior fire resistance, acoustics, and insulation for internal and external use. High-density cores ensure excellent sound absorption and non-combustibility. Hygienic Panels Designed for food, pharmaceutical, and medical industries. Smooth surfaces and tight joints prevent contamination. Easy to clean and maintain while ensuring air and water tightness. Acoustic Panels Featuring perforated inner sheets and mineral wool core, these panels reduce sound by up to 32dB. Ideal for industrial and office spaces requiring noise control. Internal Wall Panels 50 mm - 150 mm thick panels with non-combustible mineral wool core. Excellent fire resistance, sound insulation, and air-tightness...
Technical Specification
Cladme™ mineral wool sandwich panels are manufactured using premium materials and advanced techniques.
Key features include:
- Fire resistance:
- EN 13501 Class A2-s1,d0
- Ratings up to El240 for walls and El120 for ceilings
- Acoustic insulation:
- Up to 61dB noise reduction
- Thermal performance:
- U-values as low as 0.12 W/m²K
Panel specifications include:
- Standard module width: 1000 mm, 1150 mm, and 1200 mm
- Mineral wool core thickness: 100 mm to 220 mm
- Panel weight: 10.9 kg/m² to 17.68 kg/m²
- This lightweight design combines excellent performance with ease of installation.
| Module width [mm] | 1000 – 1200 | |||||||||
| Core Thickness [mm] | 50 | 80 | 100 | 120 | 150 | 175 | 200 | 240 | 300 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Fire resistance class acc. to EN 13501-2 | EI30 – EI240 | |||||||||
| U [W/m2K] acc. to EN 14509 (2013-12) incl. joint influence | 0.77 | 0.45 | 0.37 | 0.30 | 0.24 | 0.21 | 0.18 | 0.15 | 0.12 | |
| Weight [kg/m2] | 16 | 15 | 17 | 18 | 21 | 22 | 24 | 27 | 31 | |
| Classification reaction to fire acc. EN 13501-1 | A2 – s1,d0 | |||||||||
| Rw [dB] | 32 – 61 | |||||||||
| Max. Available Length [m] | 12 | |||||||||
Available in more core thicknesses and core types
| Module width [mm] | 1000 | |||||||||
| Core Thickness [mm] | 80 | 100 | 120 | 140 | 150 | 175 | 200 | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Fire resistance class acc. to EN 13501-2 | 800 – 1200 | |||||||||
| U [W/m2K] acc. to EN 14509 (2013-12) incl. joint influence | 0.53 | 0.42 | 0.35 | 0.30 | 0.28 | 0.24 | 0.21 | |||
| Weight [kg/m2] | 19 | 21 | 23 | 25 | 26 | 29 | 31 | |||
| Classification reaction to fire acc. EN 13501-1 | A2-s1,d0 | |||||||||
| Rw [dB] | 32 | |||||||||
| Max. Available Length [m] | 13,5 | |||||||||
Steel sheet thickness
- Internal 0.5/0.6/0.7
- External 0.5/0.6/0.7
Profile types
| Profile name | Profiling | External sheet | Internal sheet |
|---|---|---|---|

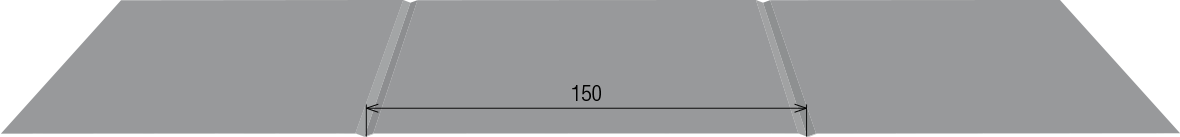

| L (line 150) |  |
 |
|

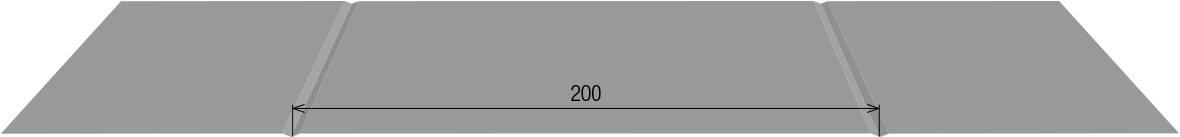

| L (line 200) |  |
|
|

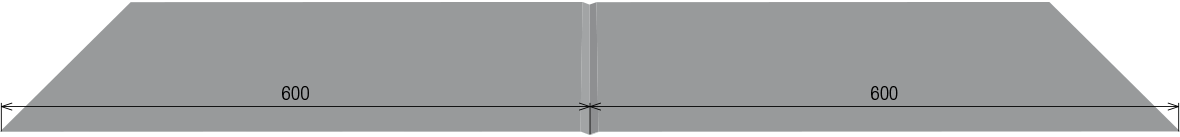

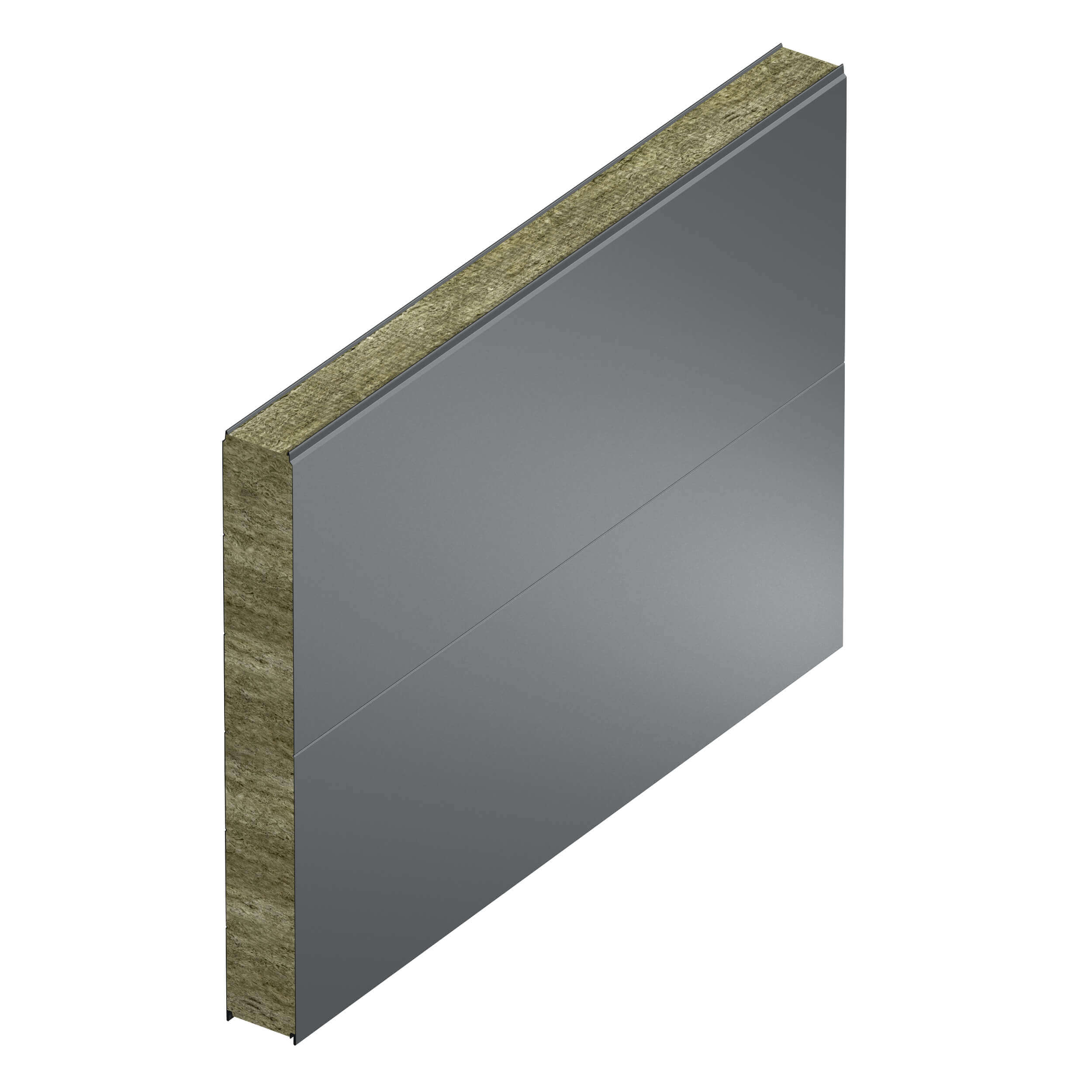

| L (line 600) |  |
|
|
| E (eurobox) |  |
|
|

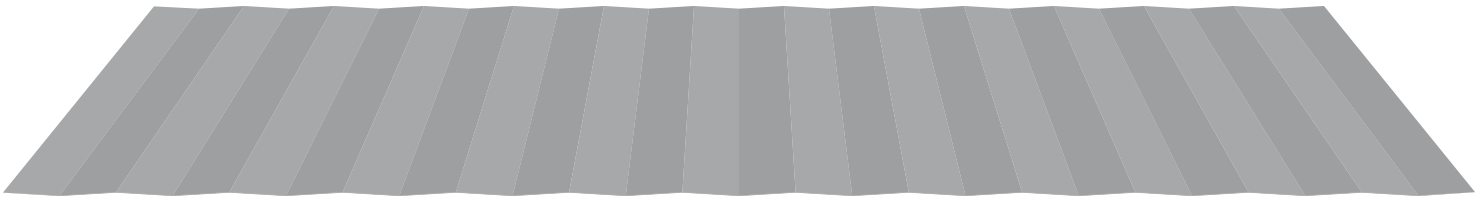

| V (v-profile) |  |
|
|

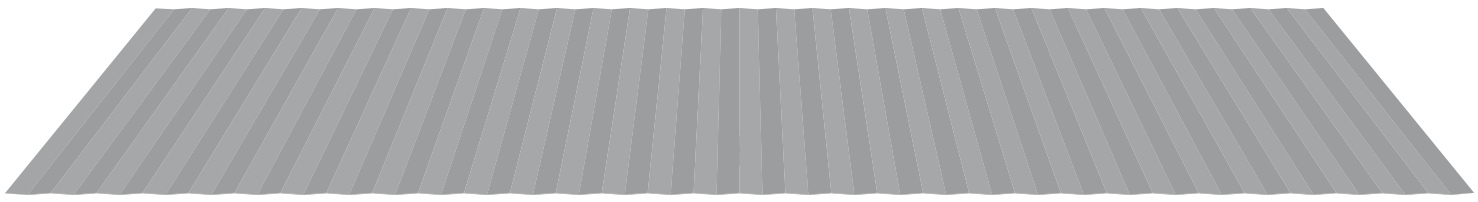

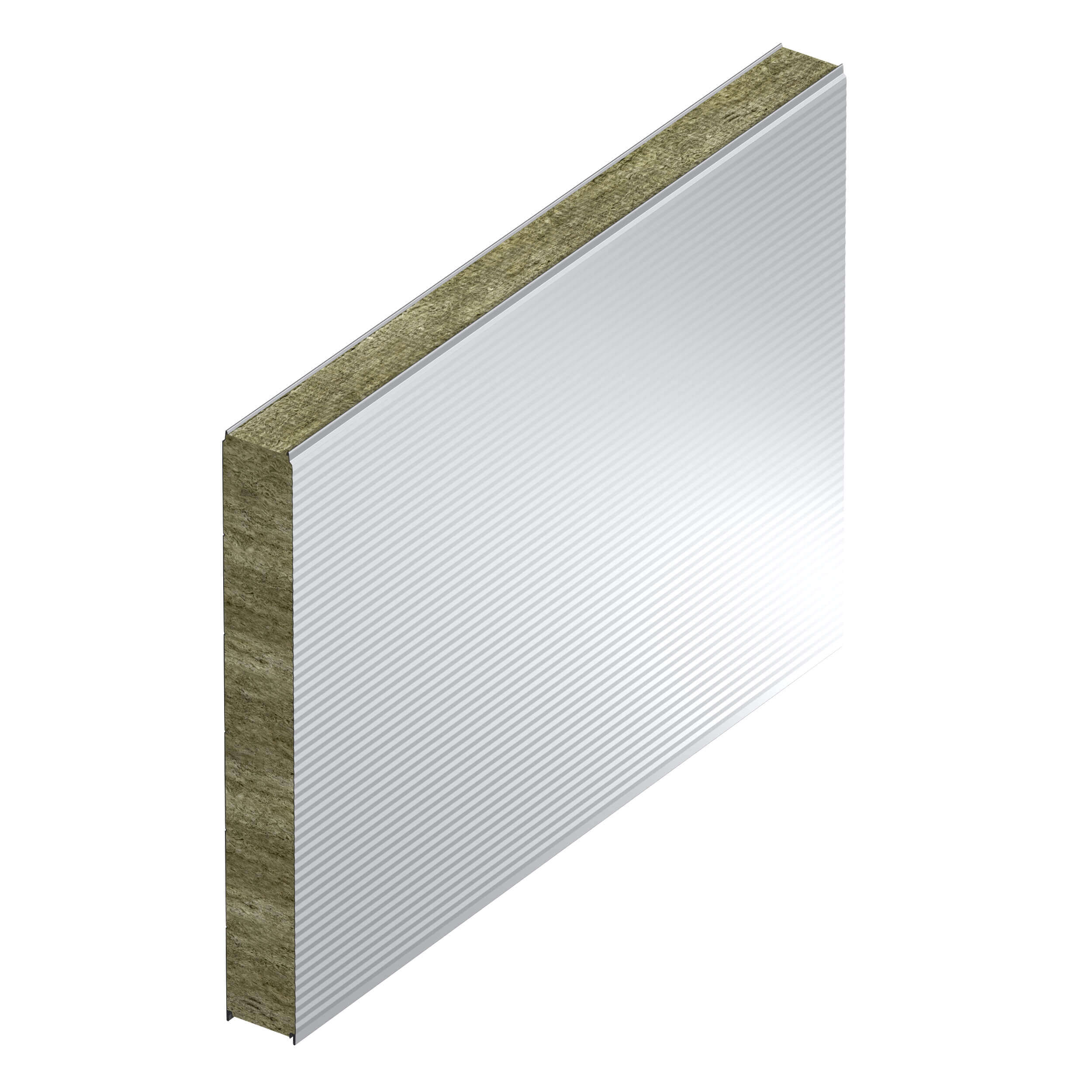

| M (micro) |  |
|
|

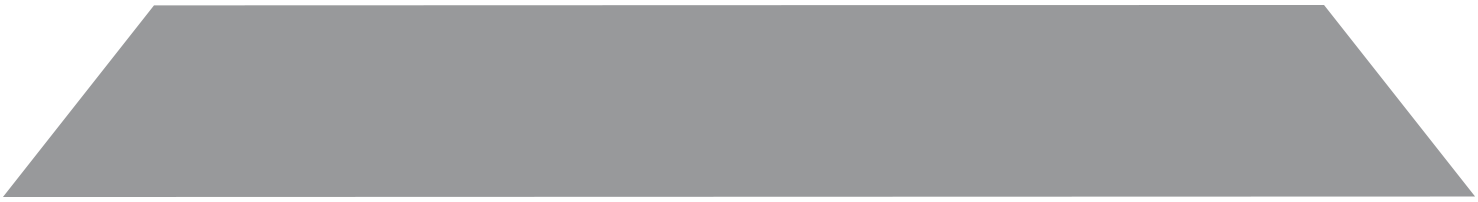

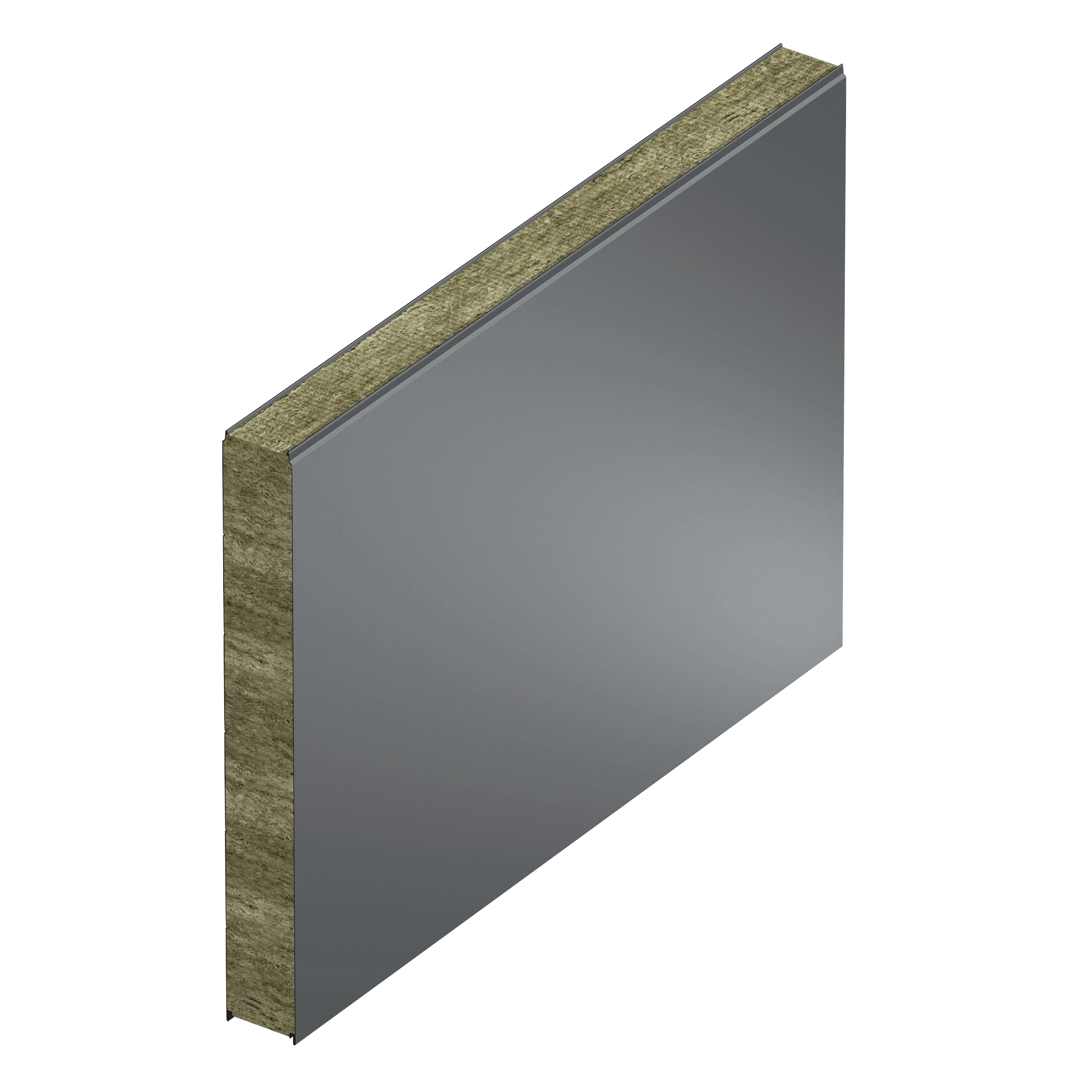

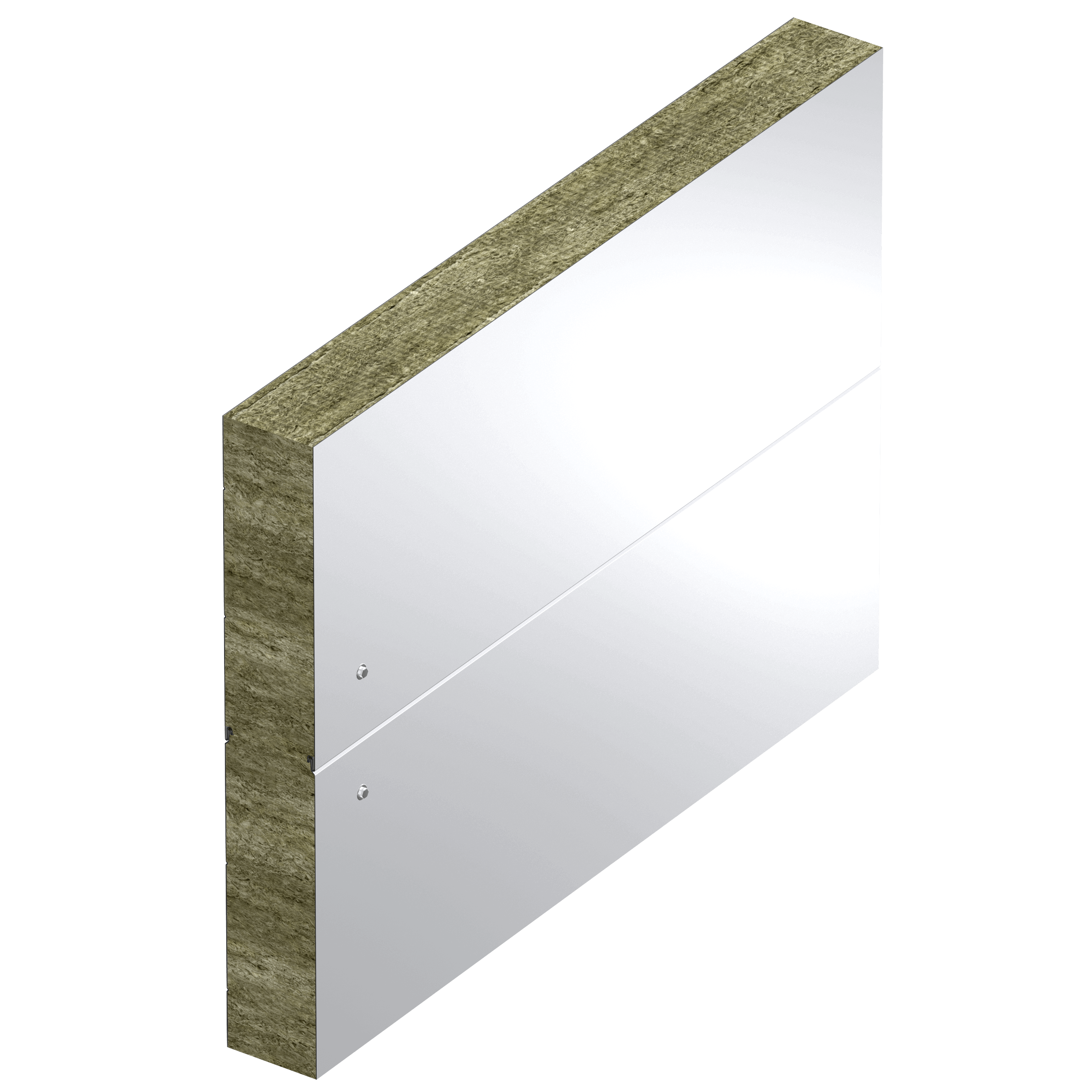

| S (smooth) |  |
|
|
*All profiles, except M (micro), are also available as acoustic panels.
Colours
RAL0020 Howlite White
RAL0021 Agate Grey
RAL0029 Goldstone Red
RAL0035 Agate Blue
RAL7016 Anthracite Grey
Available for Hidden Fixing
RAL7024 Graphite Grey
RAL7035 Light Grey
Available for Hidden Fixing
RAL9002 Grey White
Available for Hidden Fixing
RAL9005 Jet Matt
RAL9006 Silver
Available for Hidden Fixing
RAL9007 Dark Silver
Available for Hidden Fixing
RAL9010 Bright white
Zinc
Coatings
- Polyester (Also available for Hidden Fixing)
- PVDF (Also available for Hidden Fixing)
- PVC(F)
- Food Safe
- Spectrum (Also available for Hidden Fixing)
- Other
Used in
- Data centers
- Battery plants
- Automotive manufacturing facilities
- Pharmaceutical facilities
- Food Processing facilities
- Agriculture facilities
- Cold storages
- Warehouses
- Distribution centers
- Logistic centers
- Industrial buildings
- Airport terminals
- Aircraft hangars
- Arenas
- Shopping malls
- Supermarkets / Hypermarkets
- Training facilities
- Schools
Benefits

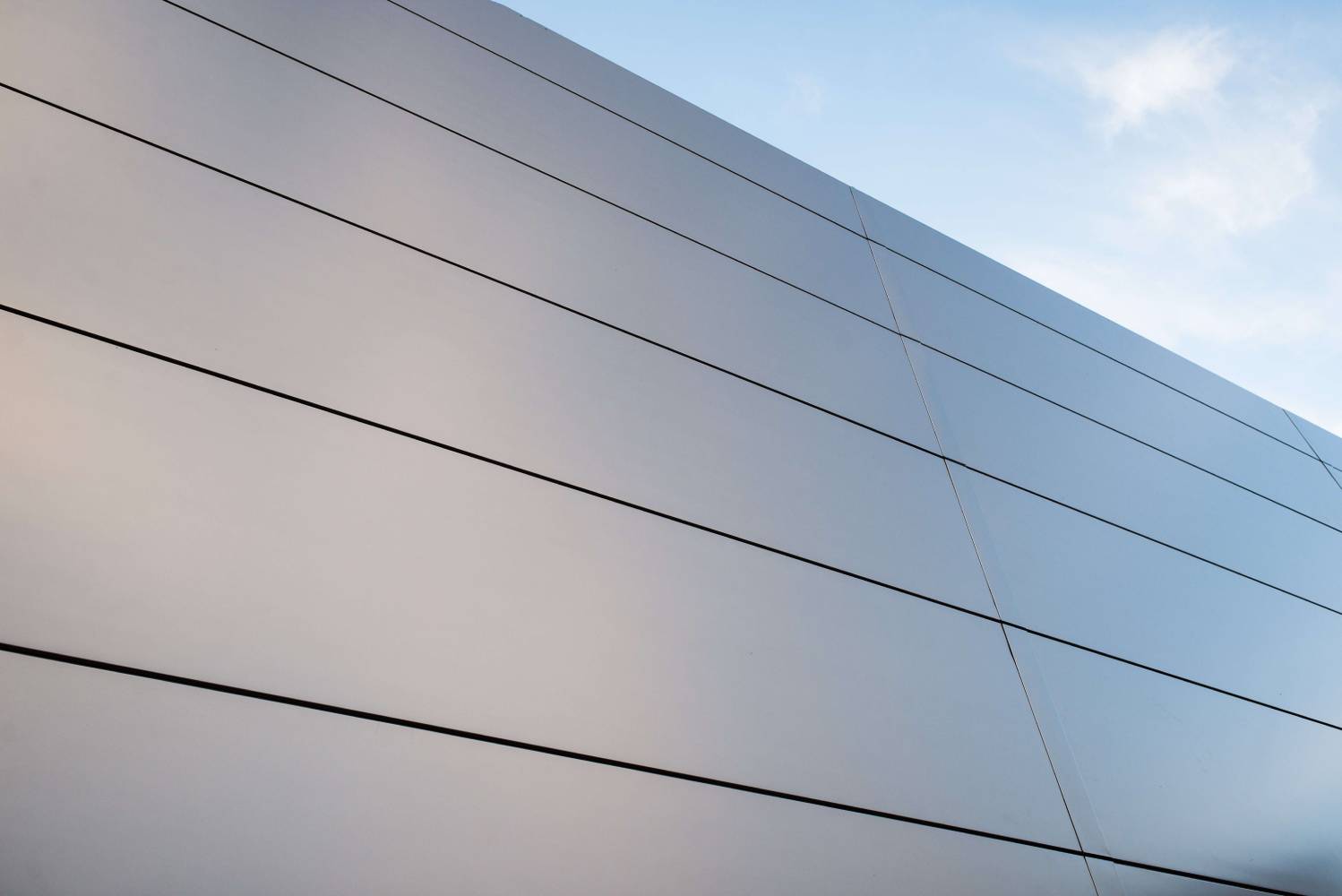

Cladme™ mineral wool insulated sandwich panels for walls offer a range of advantages that make them an ideal choice for modern construction projects.
Excellent fire resistance and superior sound absorption ensure safety and comfort in your building.
Certified for safety and reliability, our Mineral wool sandwich panels meet highest FM standards (FM 4880, FM 4881, FM 4882), ensuring excellent performance and making them an ideal choice for demanding applications.
Long spans, up to 12m, without any intermediate support.
