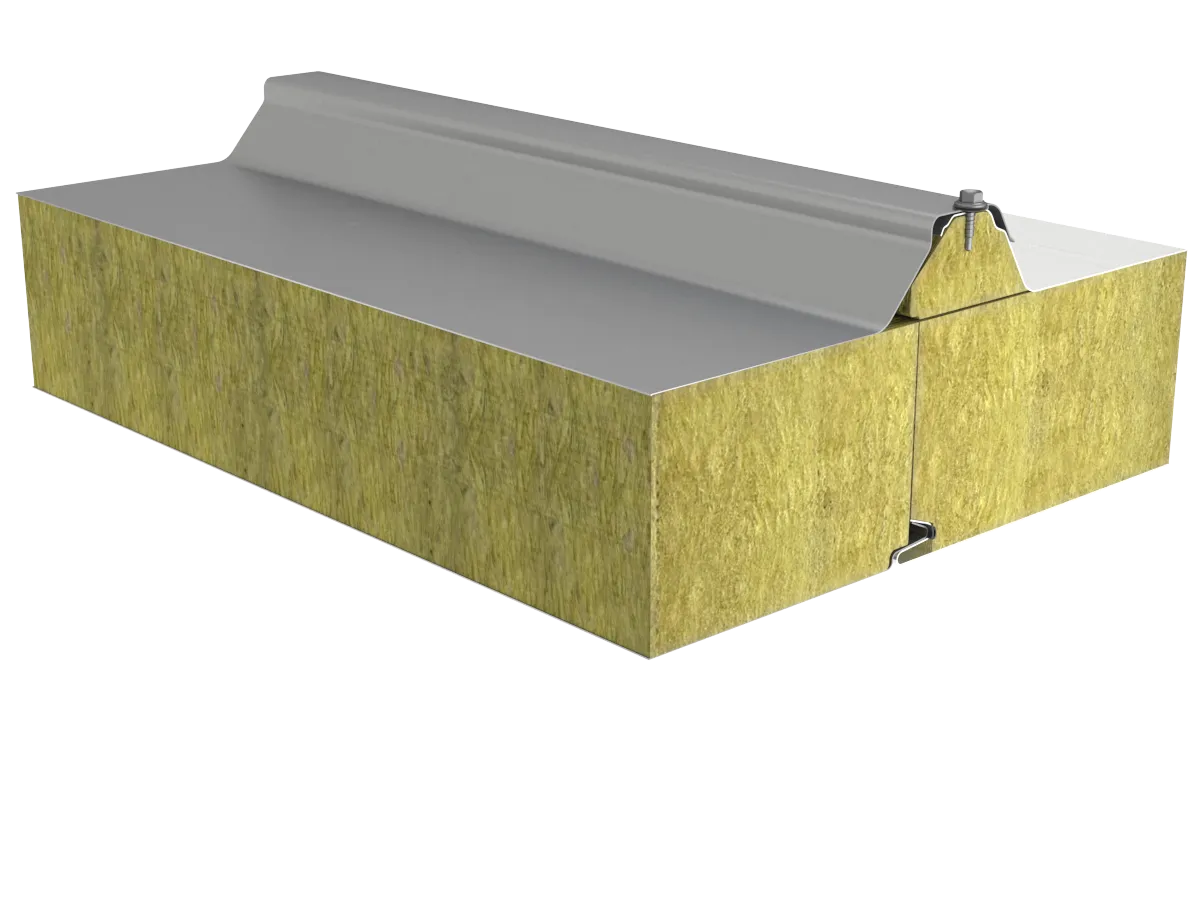

Product Description
Cladme™ mineral wool roof sandwich panels are designed for fire-resistant, thermally efficient, and acoustically insulated roofing solutions. Their high-density mineral wool core ensures non-combustibility, making them ideal for applications where fire safety and durability are paramount. These panels are widely used in industrial, commercial, and high-performance buildings, providing superior air-tightness and weather resistance. We offer a complete roofing system, including complementary accessories and integrated solutions. From planning to installation, our experts provide technical support and design guidance to ensure the best results for your project. Contact us to learn more.
Technical Specification

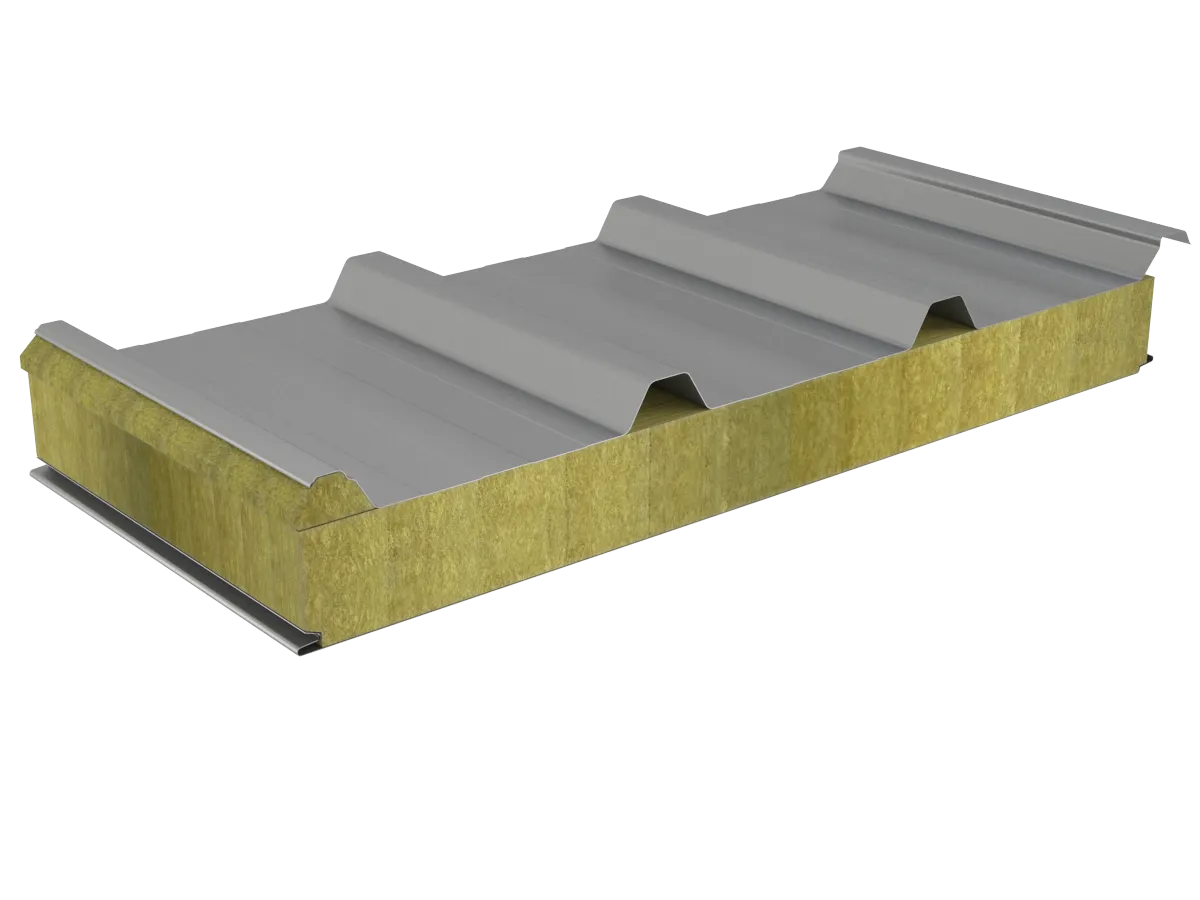

Cladme™ mineral wool roof panels feature a trapezoidal profiled system with a high load-bearing capacity, ensuring long-term performance in demanding environments. Their fire-resistant insulation meets the highest safety standards, while their durable construction provides excellent weather protection for various roofing applications.
Key features include:
- Non-combustible mineral wool core ensuring fire resistance up to EN 13501 Class A2
- Excellent acoustic insulation, reducing sound transmission for enhanced building comfort
- Weather-resistant design with high air-tightness to prevent thermal loss and moisture infiltration
- Long lifespan and durability, reducing maintenance needs over time
Panel specifications include:
- Thickness options: 80 mm – 200 mm, tailored for various thermal requirements
- Fire resistance: Up to RE240 in accordance with EN 13501-2
- U-value as low as 0.22 W/m²K, ensuring high energy efficiency
- Pitched roof: at least 4° without the formation of transverse joints or at least 6° with the formation of transverse joints.
This combination of fire resistance, insulation properties, and practical design makes our mineral wool insulated roof panels an excellent choice for modern roofing needs.
| Module width [mm] | 1000 | |||||||||
| Core Thickness [mm] | 80 | 100 | 120 | 140 | 150 | 160 | 175 | 190 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Fire resistance class acc. to EN 13501-2 | REI90 – RE240 | |||||||||
| U [W/m2K] acc. to EN 14509 (2013-12) incl. joint influence | 0.53 | 0.43 | 0.36 | 0.40 | 0.29 | 0.35 | 0.25 | 0.27 | 0.22 | |
| Weight [kg/m2] | 20.5 | 22.9 | 25.3 | 22.8 | 28.9 | 24.2 | 31.9 | 28.5 | 32.8 | |
| Classification reaction to fire acc. EN 13501-1 | A2 – s1,d0 | |||||||||
| Rw [dB] | 32 – 34 | |||||||||
| Max. Available Length [m] | 13 | |||||||||
Steel sheet thickness
- Internal 0.5
- External 0.6
Profile types
| Profile name | Profiling | External sheet | Internal sheet |
|---|---|---|---|
| T (trapezoidal) |  |
 |
|
| S (smooth) |  |
|
|
| L (linear) |  |
|
Colours
RAL7015 Slate grey
RAL7016 Anthracite grey
RAL7035 Light Grey
RAL9002 Grey White
RAL9006 Silver
RAL9007 Dark Silver
RAL9010 Bright white
Coatings
- Polyester
- PVDF
- Spectrum
Used in
- Data centers
- Battery plants
- Automotive manufacturing facilities
- Pharmaceutical facilities
- Food Processing facilities
- Agriculture facilities
- Cold storages
- Warehouses
- Distribution centers
- Logistic centers
- Industrial buildings
- Airport terminals
- Aircraft hangars
- Arenas
- Shopping malls
- Supermarkets / Hypermarkets
- Training facilities
- Schools
Benefits
Cladme™ mineral wool insulated sandwich panels for roofing offer a range of advantages that make them an ideal choice for modern construction projects.
Excellent fire resistance and superior sound absorption ensure safety and comfort in your building.
Exceptional durability and weather resistance ensure long-term protection against harsh climates and extreme conditions.
Optimized structural strength with a high load-bearing capacity, making it ideal for demanding industrial and commercial applications.
