Product Description
Cladme™ PIR roof sandwich panels provide a high-performance roofing solution with excellent thermal insulation, structural stability, and energy efficiency. The rigid, HCFC-free PIR core ensures lightweight construction while delivering superior insulation, reducing overall material usage and installation costs. These panels are ideal for industrial, commercial, and temperature-controlled buildings, offering reliable weather resistance and air-tightness. We offer a complete roofing system, including complementary accessories and integrated solutions. From planning to installation, our experts provide technical support and design guidance to ensure the best results for your project. Contact us to learn more.
Technical Specification

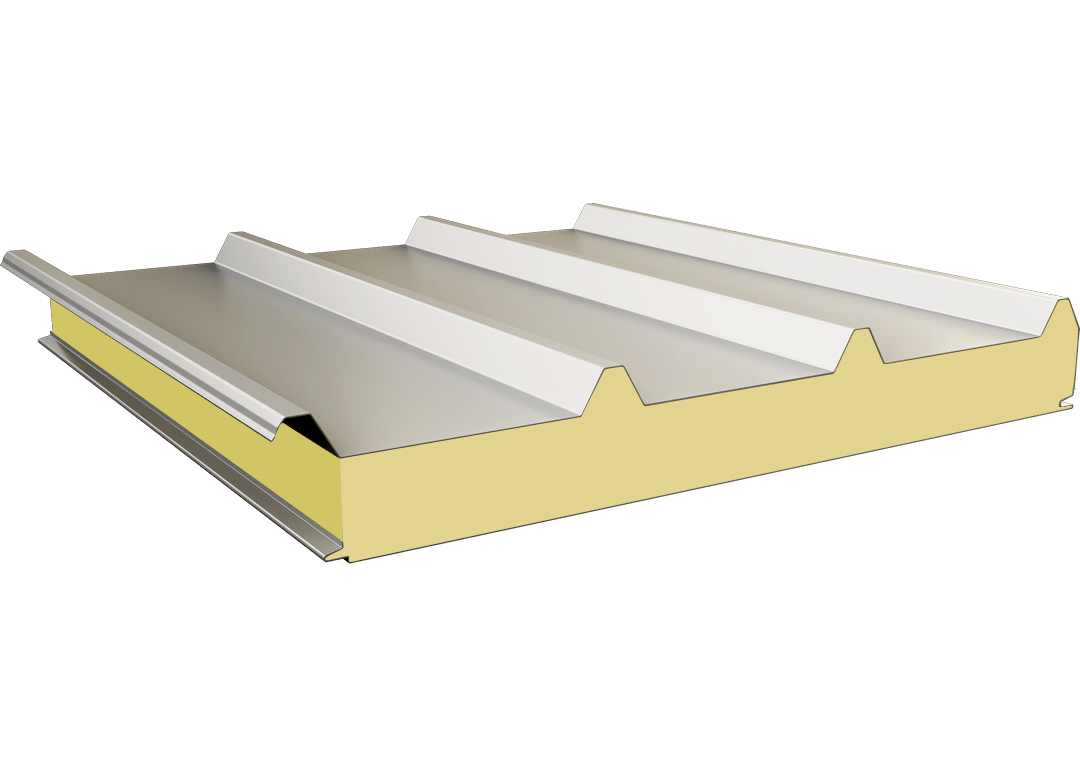

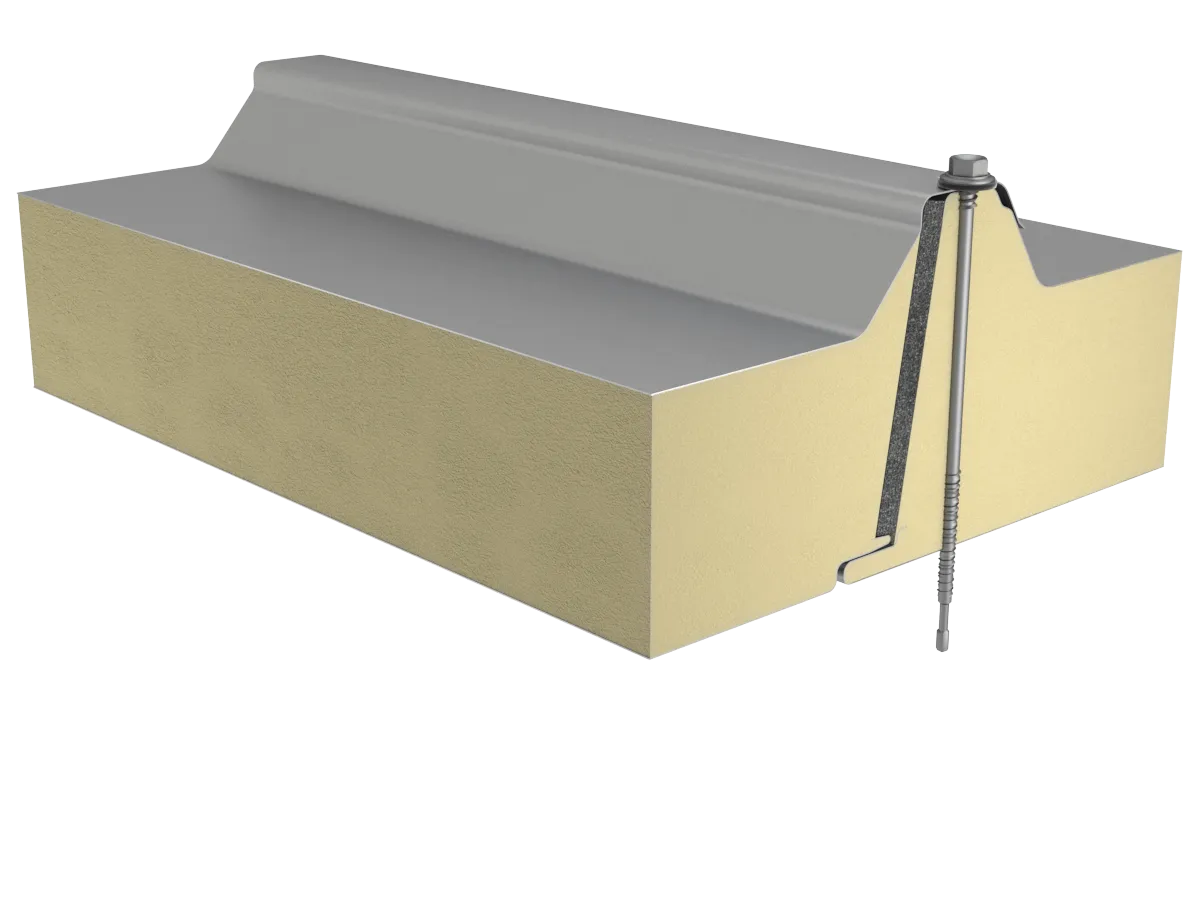

Cladme™ PIR roof panels feature a trapezoidal profiled system, ensuring high load-bearing capacity with superior insulation.
Compared to mineral wool panels, PIR panels require significantly less thickness to achieve the same U-values, resulting in lighter weight, reduced transportation costs, and easier handling during installation.
Their optimized panel thickness enhances energy efficiency, reduces heat loss, and simplifies handling on-site.
Key features include:
- High-performance PIR core, delivering superior thermal insulation
- Requires less thickness than mineral wool panels for the same insulation performance, reducing overall material usage
- Durable and low-maintenance, ensuring long-lasting performance
Panel specifications include:
- Thickness options: 25 mm – 170 mm
- U-values as low as 0.13 W/m²K, ensuring energy efficiency
- Lengths up to 18.5 m
- Pitched roof: at least 3° (recommended 4°) without cross joints or at least 5° with cross joints.
- Quick and secure installation
This combination of advanced technology and high-quality materials makes Cladme™ PIR panels a durable and reliable solution for modern construction needs.
| Module width [mm] | 1000 | |||||||||
| Core Thickness [mm] | 25 | 40 | 60 | 80 | 100 | 120 | 140 | 150 | 160 | 170 |
|---|---|---|---|---|---|---|---|---|---|---|
| Fire resistance class acc. to EN 13501-2 | Up to REI30 | |||||||||
| U [W/m2K] acc. to EN 14509 (2013-12) incl. joint influence | 0.79 | 0.53 | 0.34 | 0.26 | 0.21 | 0.18 | 0.16 | 0.15 | 0.14 | 0.13 |
| Weight [kg/m2] | 9.40 | 10.00 | 11.30 | 11.90 | 12.70 | 13.40 | 14.10 | 14.50 | 14.90 | 15.50 |
| Classification reaction to fire acc. EN 13501-1 | B – s2,d0 | |||||||||
| Rw [dB] | 25 | |||||||||
| Max. Available Length [m] | 18.5 | |||||||||
Steel sheet thickness
- Internal 0.4/0.5
- External 0.5/0.6
Profile types
| Profile name | Profiling | External sheet | Internal sheet |
|---|---|---|---|

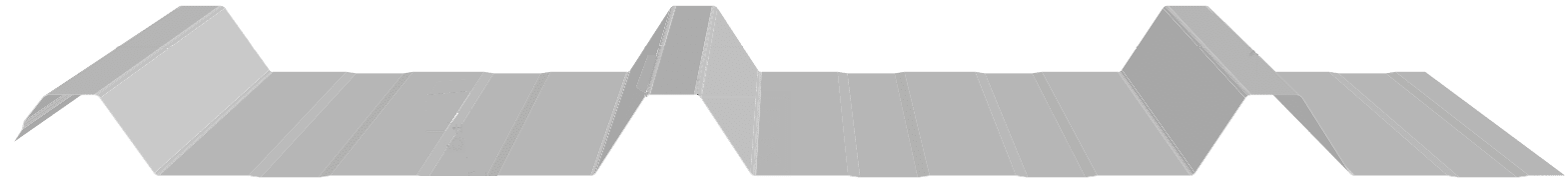

| T (trapezoidal) |  |
 |
|

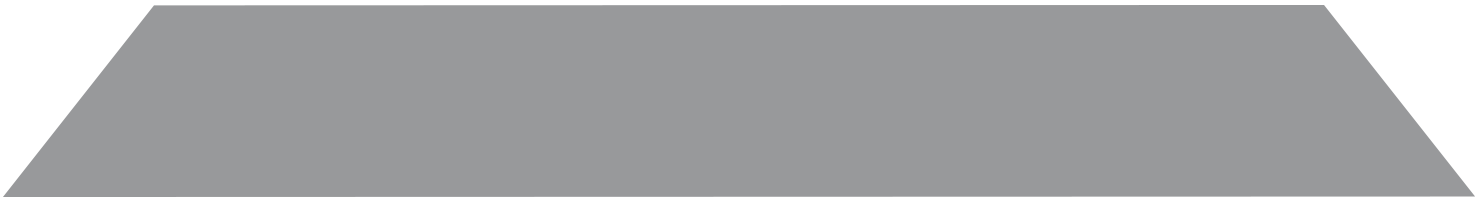

| S (smooth) |  |
|
|

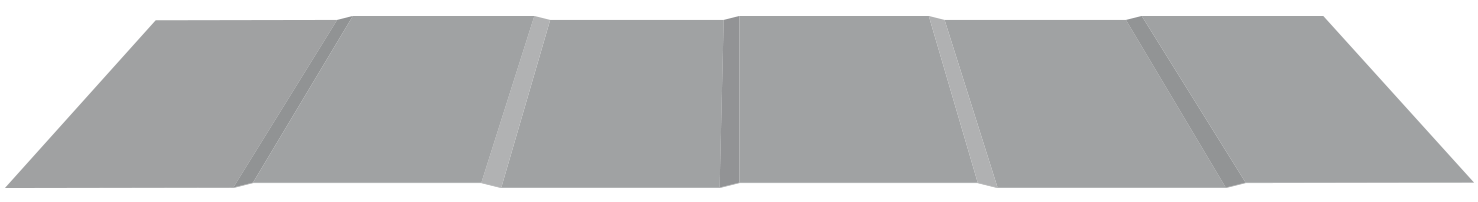

| L (linear) |  |
|
Colours
RAL1015 Light ivory
RAL1021 Colza yellow
RAL2003 Pastel orange
RAL3000 Flame Red
RAL3009 Oxide red
RAL3013 Tomato red
RAL5003 Sapphire blue
RAL5005 Signal blue
RAL5012 Light blue
RAL6011 Reseda green
RAL6018 Yellow green
RAL7015 Slate grey
RAL7016 Anthracite grey
RAL7035 Light Grey
Available for Hidden Fixing
RAL7040 Window grey
RAL9002 Grey White
Available for Hidden Fixing
RAL9003 Signal white
RAL9006 Silver
Available for Hidden Fixing
Coatings
- Polyester
- PVDF
- PVC(F)
- Food Safe
- Other

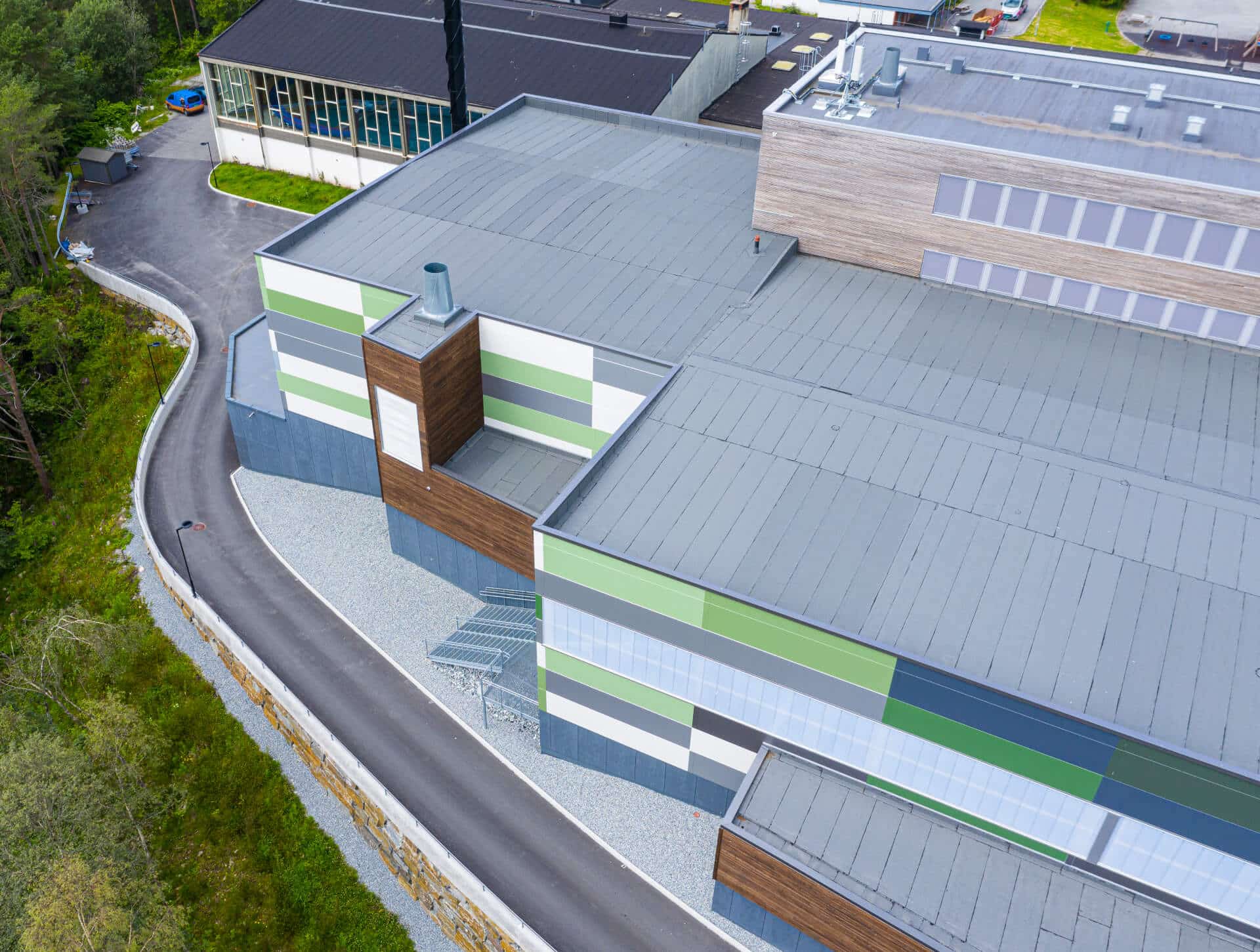

Used in
- Data centers
- Battery plants
- Automotive manufacturing facilities
- Pharmaceutical facilities
- Food Processing facilities
- Agriculture facilities
- Cold storages
- Warehouses
- Distribution centers
- Logistic centers
- Industrial buildings
- Airport terminals
- Aircraft hangars
- Arenas
- Shopping malls
- Supermarkets / Hypermarkets
- Training facilities
- Schools
Benefits
Cladme™ PIR insulated sandwich panels offer exceptional advantages for modern construction projects.
Unmatched thermal insulation performance contributes to superior energy efficiency in buildings.
Lightweight design, compared to mineral wool panels, facilitates easier handling and installation, reducing construction time and costs.
Requires less thickness than mineral wool for the same U-value, reducing transportation needs, container usage, and overall costs.
