Product Description
Cladme™ single skin wall cladding offers a versatile and economical solution for various applications. Our single skin profiles, roll-formed from high-quality steel coil, are available in a range of shapes, sizes, and finishes to suit your project's aesthetic and functional requirements. These lightweight, easy-to-install profiles can be used for ventilated facades, decorative cladding, weathertight barriers, or internal linings. With their durability, design flexibility, and rapid installation, Cladme™ single skin products are an ideal choice for new construction and renovation projects across industrial, commercial, agricultural, and civil sectors. Our sinusoidal and trapezoidal profiles provide unique aesthetic options for facades. Sinusoidal profiles...
Technical Specification
Cladme™ single skin wall cladding profiles are manufactured using state-of-the-art roll-forming technology and premium-quality steel coil.
Key features include:
- Profile shapes:

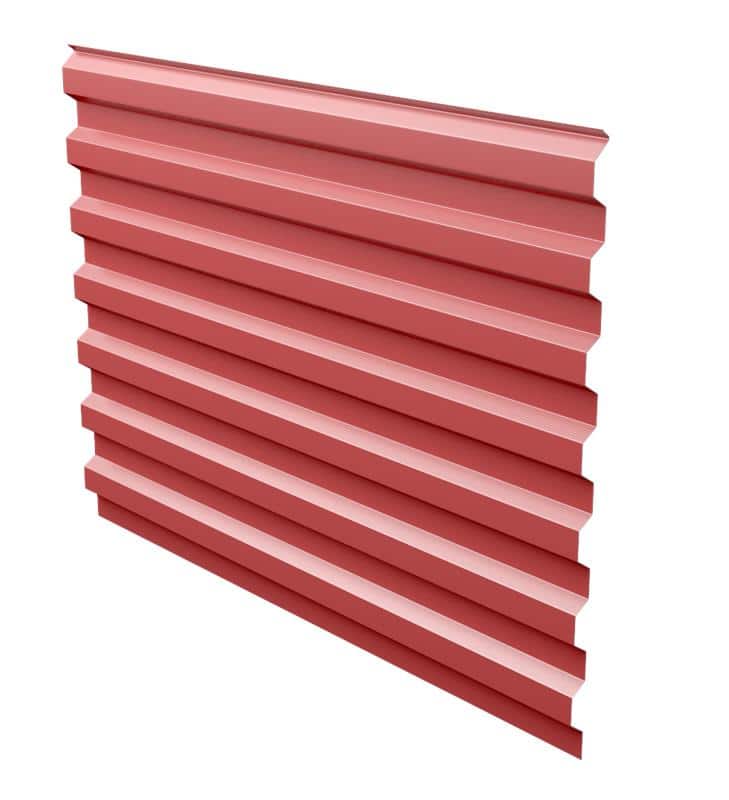

- Trapezoidal

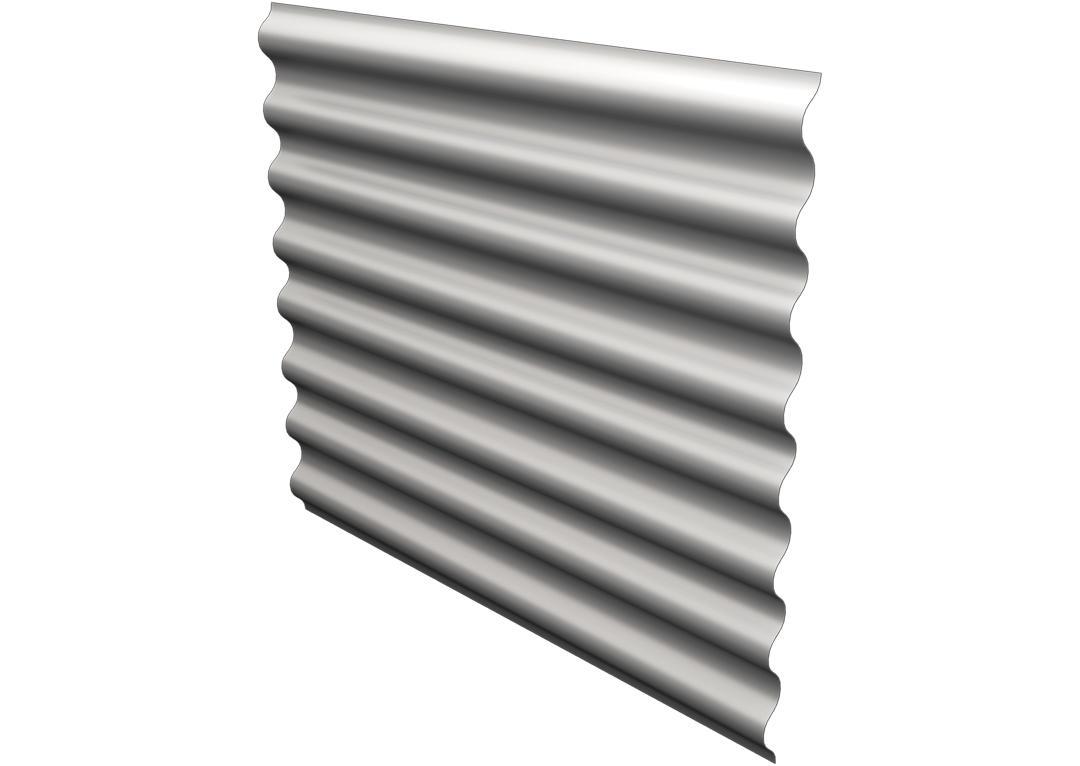

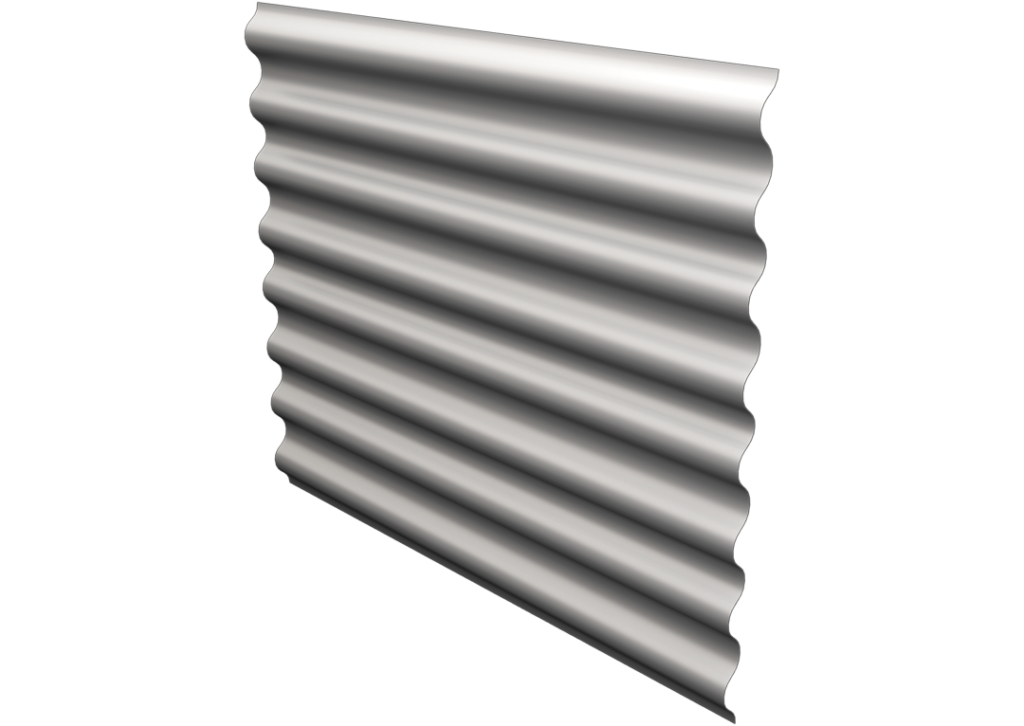

- Sinusoidal
- Box profiles
- Single skin specifications:
- Module widths: 600 mm to 1200 mm
- Steel thickness: 0.5 mm to 1.5 mm
- Yield strengths: 320 N/mm² to 450 N/mm²
- Coating options:
- Polyester
- PVDF
- ARS (Anti-Rust System)
Benefits:
- Durability and weather resistance
- Versatility for various applications
Low Profile T45-37-900 sheets are designed specifically for commercial and industrial building facades and internal linings. These profiles are ideal when speed of construction and functionality are key priorities.
This combination of premium materials and versatile design makes Cladme™ single skin profiles a reliable and cost-effective solution for modern construction needs.
| Effective width [mm] | 800 – 1134 |
| Profile Height [mm] | 15 – 45 |
|---|---|
| Sheet Thickness | 0.40 – 1.00 |
| Weight [kg/m2] | 2.05 – 6.70 |
| Max. Available Length Per Sheet [m] | 500 – 12 000 |
Material
- Aluminium (natural)
- Aluminium (prepainted)
- Steel (prepainted)
- Copper
- Aluzinc
Profile types
- Trapezoidal
- Sinusoidal
Colours
Aluminium – RAL3009
Aluminium – RAL5010
Aluminium – RAL6005
Aluminium – RAL7016 Anthracite Grey
Aluminium – RAL8017
Aluminium – RAL9002 Grey White
Aluminium – RAL9006 Silver
Steel – RAL1015 Light ivory
Steel – RAL7035 Light grey
Steel – RAL9006 Silver
Steel – RAL9007 Dark Silver
Steel – RAL9010 Bright white
Coatings
- Polyester
- PVDF
Used in
- Agriculture
- Warehouses
- Distribution
- Logistic
- Industrial
- Hangars
- Arenas
- Malls
- Exhibition halls
- Supermarkets
- Training facilities
- Schools
Benefits
Cladme™ single skin wall cladding offers numerous advantages that make it a top choice for architects, contractors, and building owners.
Cost-effective solution for a wide range of wall cladding applications, suitable for new construction and renovations across various sectors.
Lightweight profiles enable rapid coverage and completion of weatherproof structures, reducing labor costs and construction time.
Available in diverse shapes, sizes, and finishes to suit project requirements. Sinusoidal and trapezoidal profiles offer unique design options for striking facades.
