Product Description
Cladme™ standing seam roofing systems offer a versatile and sustainable metal roof solution adaptable to almost any building geometry. Our system combines sleek aesthetics with exceptional weather resistance and structural performance, making it ideal for new construction and renovation projects. The profiles are self-supporting and installed without penetration, featuring variable panel lengths that eliminate cross overlaps and reduce the risk of leaks. This high-performance system is valued for covering wide surfaces, especially on larger developments such as industrial buildings, airports, and stadiums. The rigid profile design gives each panel excellent span capability, while the hidden fixed clips prevent external elements...
Technical Specification
Cladme™ standing seam roofing systems are crafted using high-quality materials including aluminum, steel, stainless steel, copper, and titanium zinc.
Key features include:
- U-values:
- < 0.09 W/m²K
- Sound transmission values of >50dB with multi-layer roof structures
- Flexible adaptability to almost any building geometry
- Profiled track can also be rounded, convex, concave and curved
- Extensive system accessories can be retrofitted without any penetration
- Profile variants:

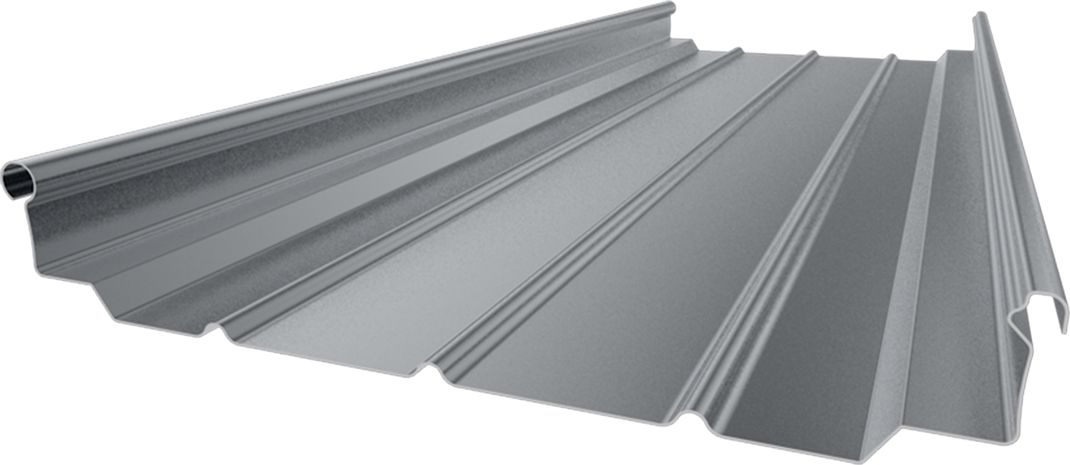

- N 50 (50 mm seam height)
- N 65 (65 mm seam height)
- VF 65 (65 mm seam height for use on rigid insulation and timber boarding)
- Panel dimensions:
- Widths: 300 mm to 600 mm
- Lengths: Customizable up to 150 m for site-rolled panels
- Metal thickness range:
- Steel: 0.50 mm to 0.80 mm
- Aluminium: 0.80 mm to 1.20 mm
- Design flexibility:
- Minimum roof slope: 1%

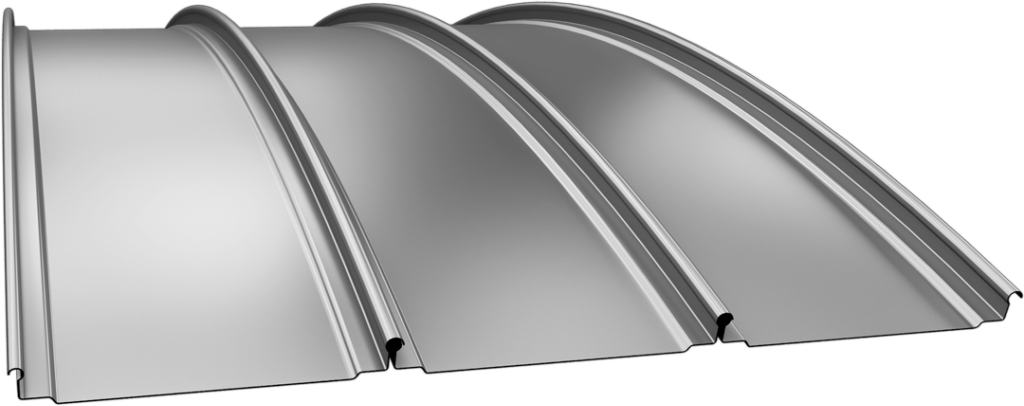

- Curved applications: Convex curves down to 5m radius, concave curves to 8m radius (for 0.9mm thick aluminium)
- Surface finishes:
- Color systems: PVDF, HDP, polyester, and custom options available
Detailed static calculations are prepared based on the specific loadings of each project.
Please contact us for more details.
Material
- Aluminium
- Steel
- Stainless Steel
- Copper
- Zinc
- Titanium Zinc
- Brass
Profile types
| Profile name | Profiling | External sheet | Internal sheet |
|---|---|---|---|
| VF 65 mm h |  |
 |
|
| N 65 mm h | |
|
|
| N 50 mm h | |
|
Colours
No colors found for this category.
Coatings
- Polyester
- PVDF
- PVDF Multi-layered Systems
- ARS (Abrasion resistant System)
- Other
Used in
- Data centers
- Battery plants
- Automotive manufacturing facilities
- Pharmaceutical facilities
- Food Processing facilities
- Agriculture facilities
- Cold storages
- Warehouses
- Distribution centers
- Logistic centers
- Industrial buildings
- Airport terminals
- Aircraft hangars
- Arenas
- Shopping malls
- Supermarkets / Hypermarkets
- Training facilities
- Schools
Benefits
Cladme™ standing seam roofing systems offer exceptional advantages for modern architectural projects, combining functionality with elegance.
Adaptable to almost any building shape, including angular, convex, concave, and tapered forms, with a wide choice of materials and colors for creative freedom.
Weathertight construction with high fire rating (AA Rating) and excellent thermal and sound insulation properties, achieving U-values as low as 0.09 W/m²K.
Made from 100% recyclable materials with penetration-free fastening for durability. Offers superior insulation and weather resistance, adapting to thermal movement for long-term performance.
